Product Description
8" 1280x800 IPS LVDS LCD - 1000nits Sunlight Readable Industrial TFT Module Wide Viewing Angle
Module from China manufacturer - Amelin Electronic

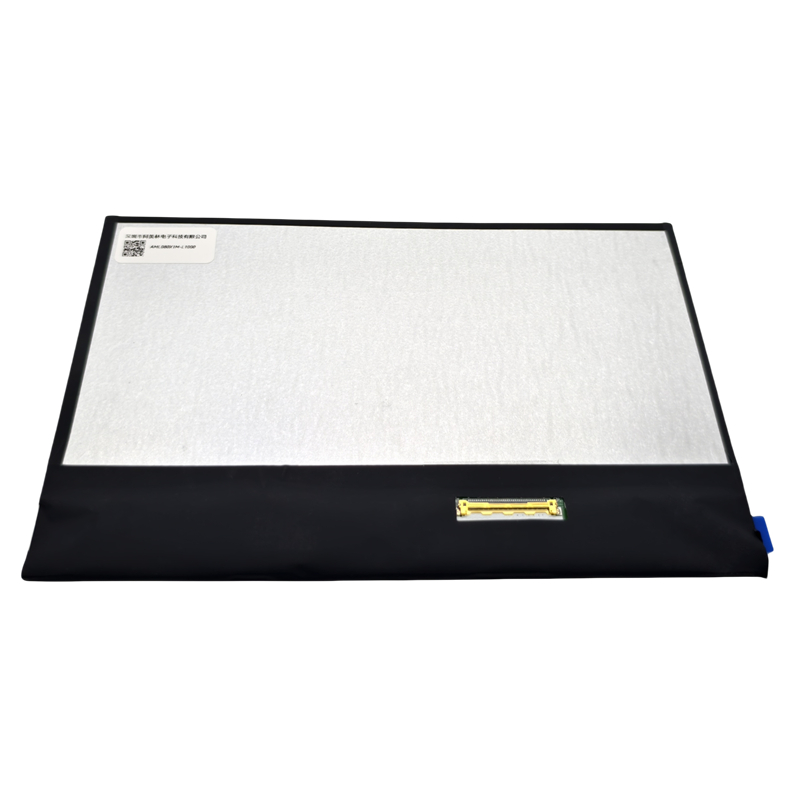

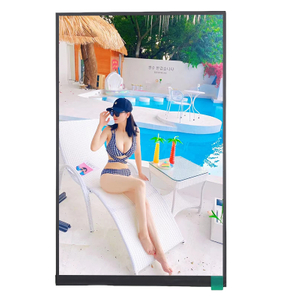

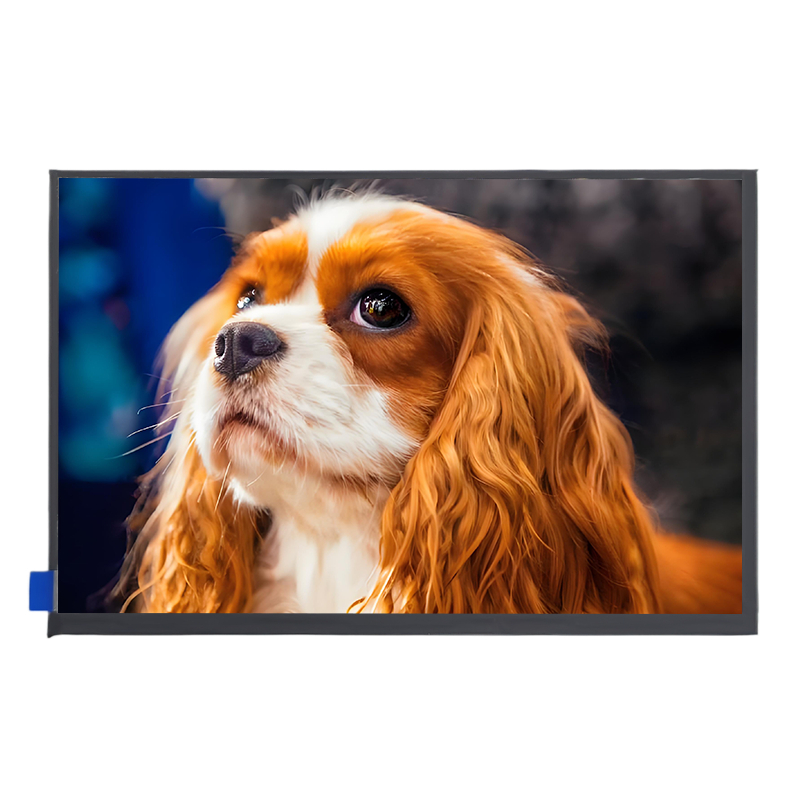

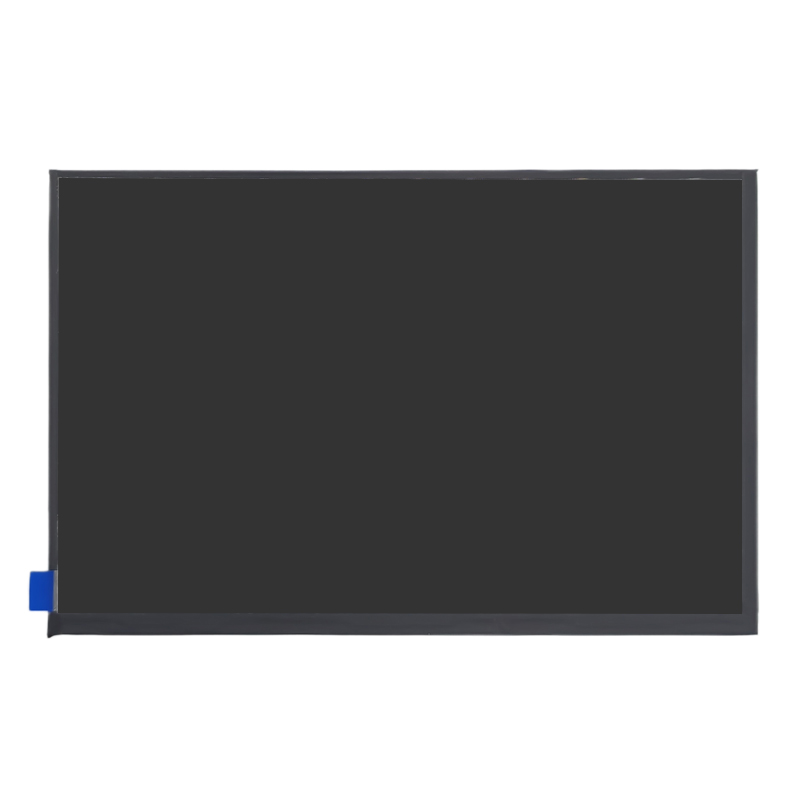

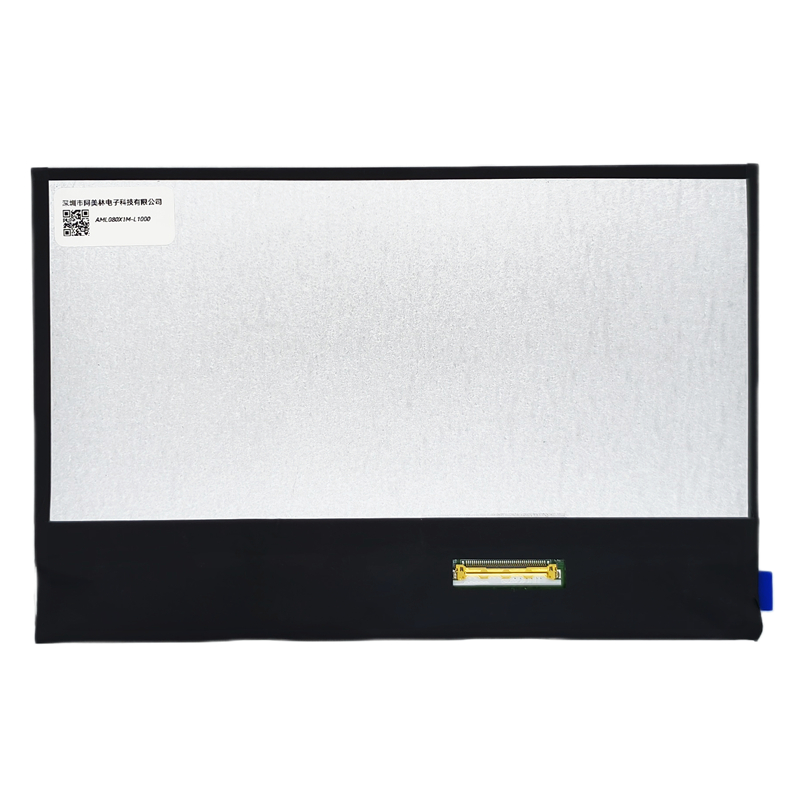

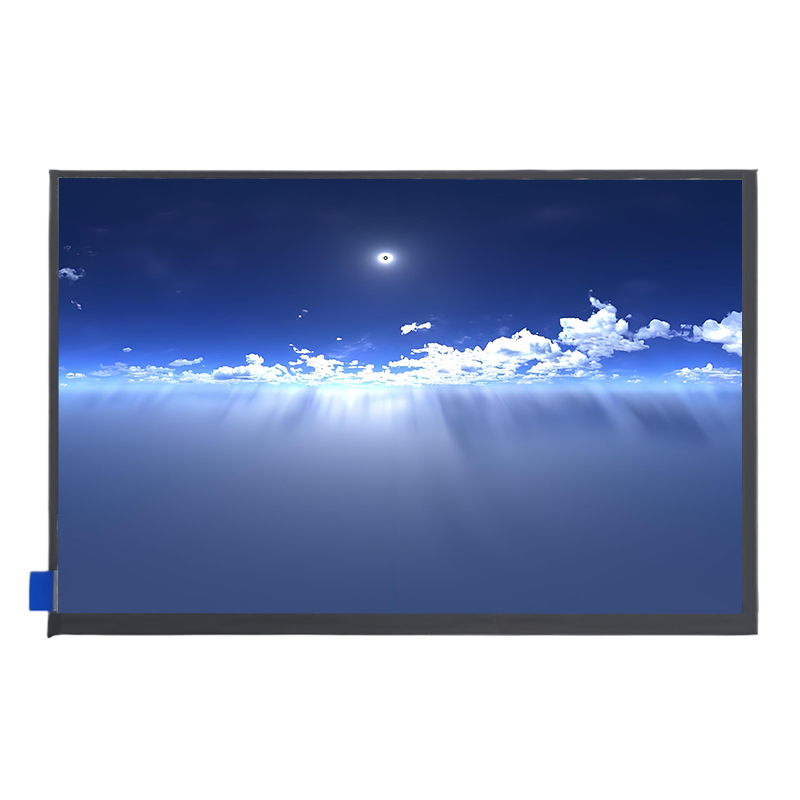

Pictures in kind
Product parameters
| Items | Specification |
| Display Type: | 8.0" TFT LCD |
| Resolution: | 1280(RGB)*800 |
| Viewing Direction: | 85/85/85/85 |
| Controller IC: | - |
| Display Mode: | Transmissive Normally Black |
| Overall Size: | 181.25(H)*118.75(V)*2.4(D)mm |
| Active Area: | 172.222(H)*107.64(V) mm |
| colour: | 16.7M |
| Luminance: | 1000cd/m2 |
| Interface Type: | LVDS Interface |
| Backlight: | 32 LEDs (white) |
| Life Time | 50000h |
| Operating Temperature: | -20----70 °C |
| Storating Temperature: | -30----80 °C |
| Certification: | ISO9001 ISOTS16949 ISO13485 |
| Compliant: | RoHS CE FCC |
| Warranty | 1 Year |
Our services
100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
The above is only a partial product display, and our company's products include but are not limited to
0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more
product and style information. Thank you!
