Product Description
Industrial 8-inch IPS LCD 800*1280 MIPI - High Brightness TFT Module Customizable Touch Screen & Raspberry Pi Support
Module from China manufacturer - Amelin Electronic

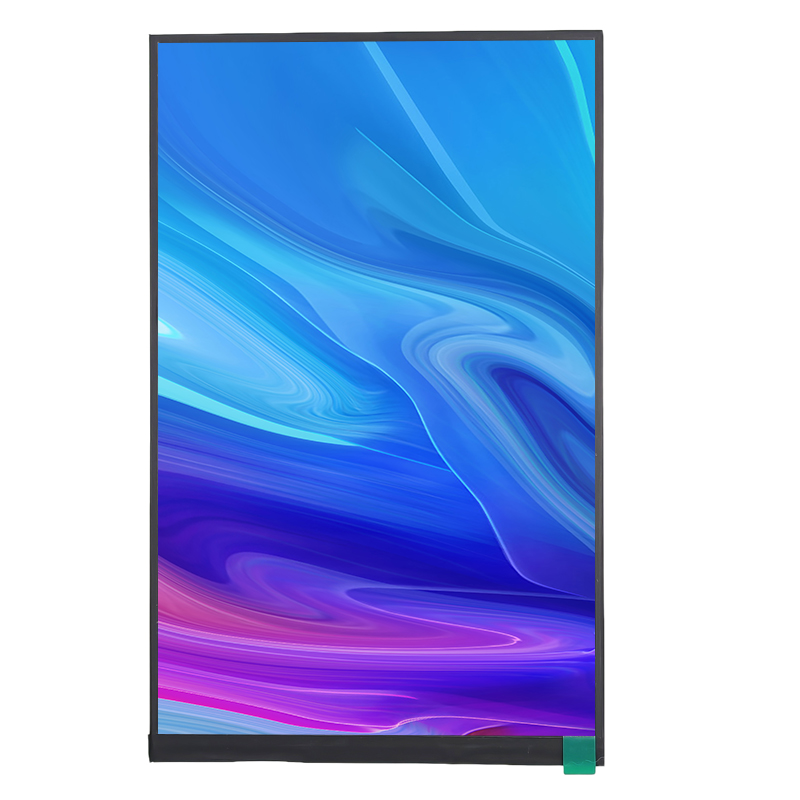

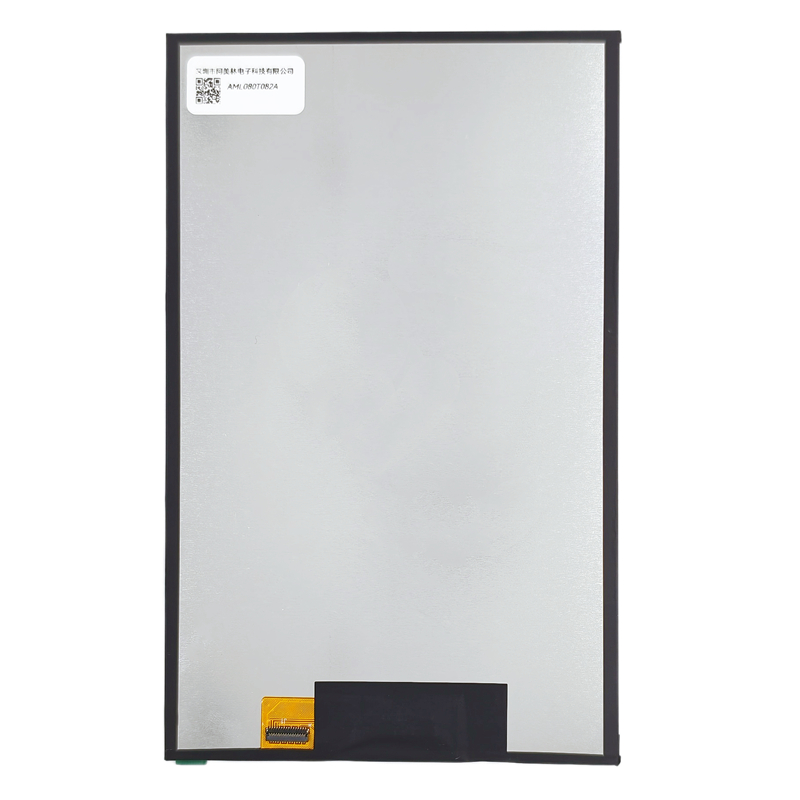

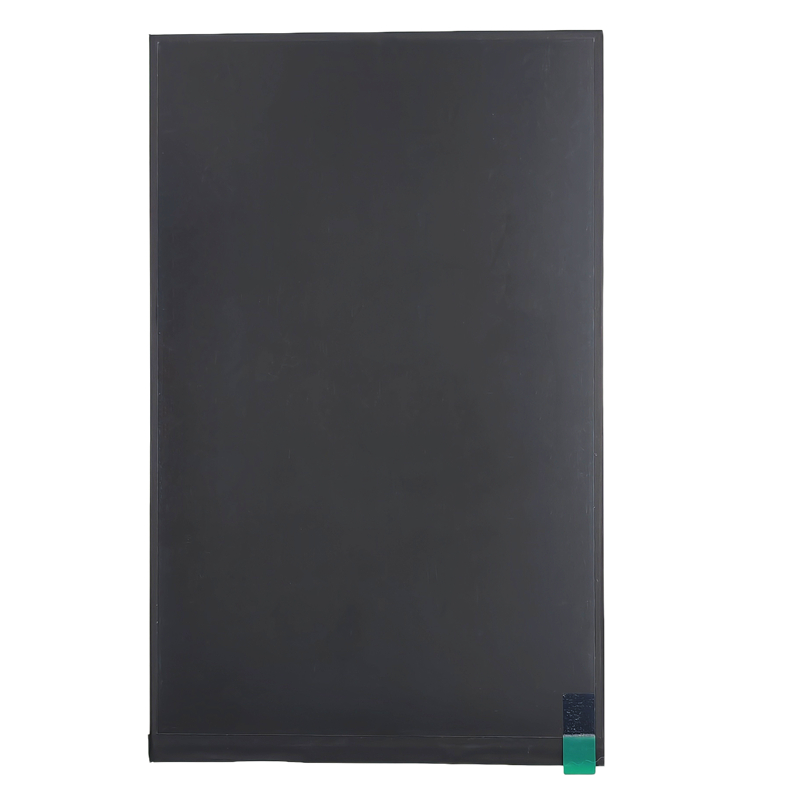

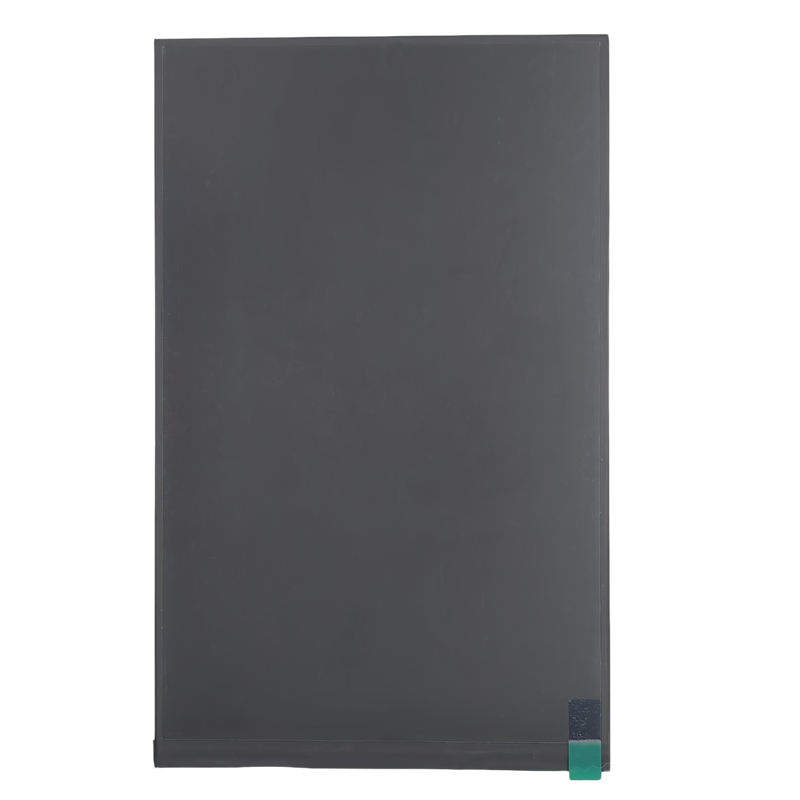

Pictures in kind



Product parameters
Items | Specification |
Display Type: | 8.0" TFT LCD |
Resolution: | 800(RGB)*1280 |
Viewing Direction: | 80/80/80/80 |
Controller IC: | - |
Display Mode: | Transmissive Normally Black |
Overall Size: | 181.25(H)*118.75(V)*2.5(D)mm |
Active Area: | 172.222(H)*107.64(V) mm |
colour: | 16.7M |
Luminance: | 500cd/m2 |
Interface Type: | MIPI Interface |
Backlight: | 21 LEDs (white) |
Life Time | 50000h |
Operating Temperature: | -20----70 °C |
Storating Temperature: | -30----80 °C |
Certification: | ISO9001 ISOTS16949 ISO13485 |
Compliant: | RoHS CE FCC |
Warranty | 1 Year |
Our services

100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
quantity | lead time |
1-20(pieces) | Within one working day |
21-100(pieces) | Within two working days |
101-500(pieces) | Within three working days |
501-1000(pieces) | Within a week |
1000-3000(pieces) | Within two weeks |
3000-5000(pieces) | Within three weeks |
5000+ | Within four weeks |


Production process





The above is only a partial product display, and our company's products include but are not limited to
0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more
product and style information. Thank you!
