Product Description
Industrial 4.3 Inch IPS LCD 480*800 - TFT Display Module W/ Optional Touch Screen for HMI/Medical
4.3-inch Touch Screen /Lcd Module
Module from China manufacturer - Amelin Electronic

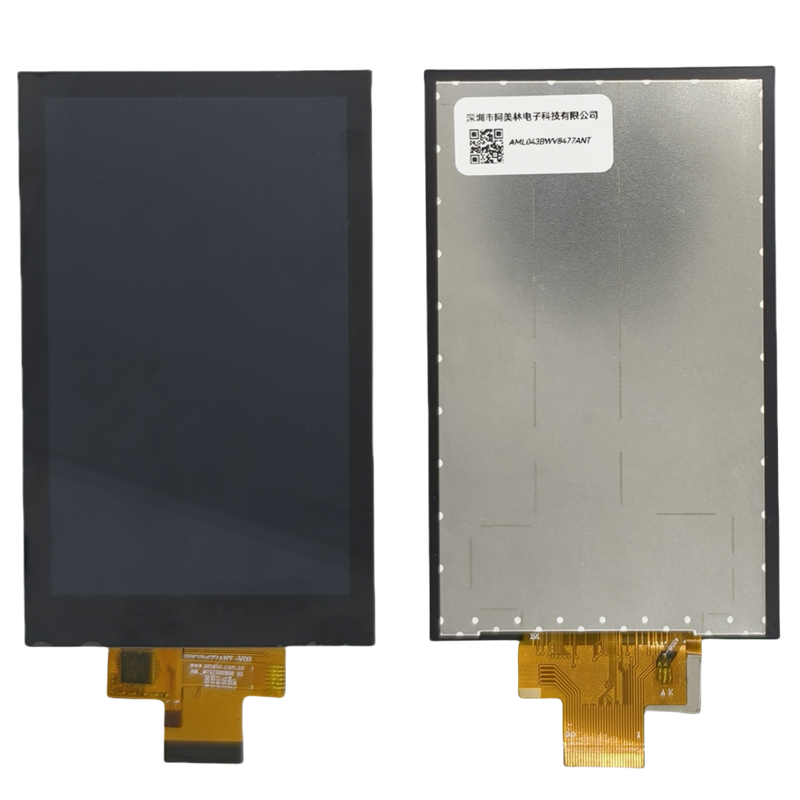

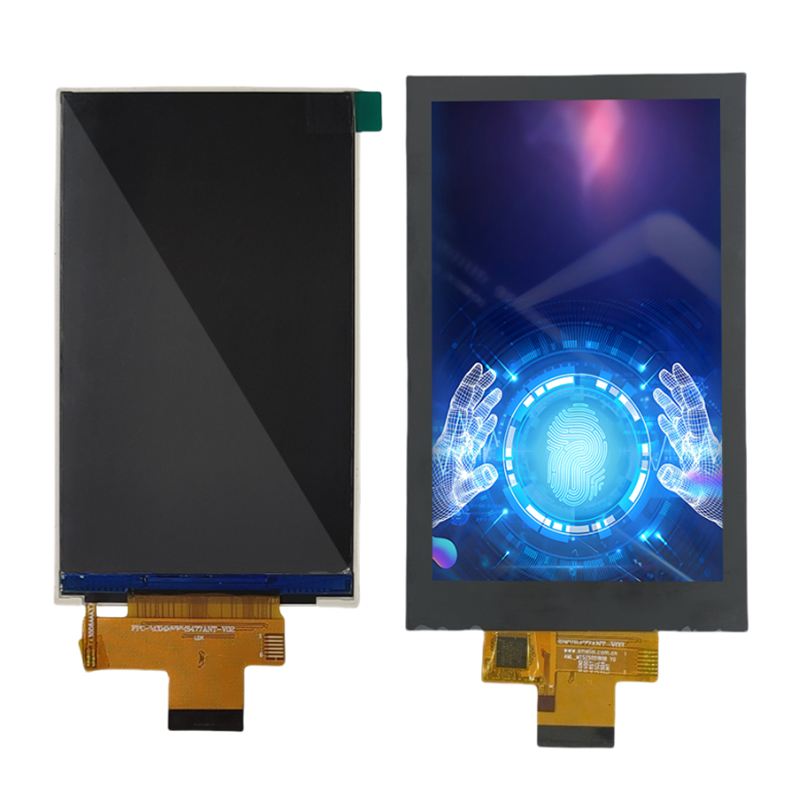

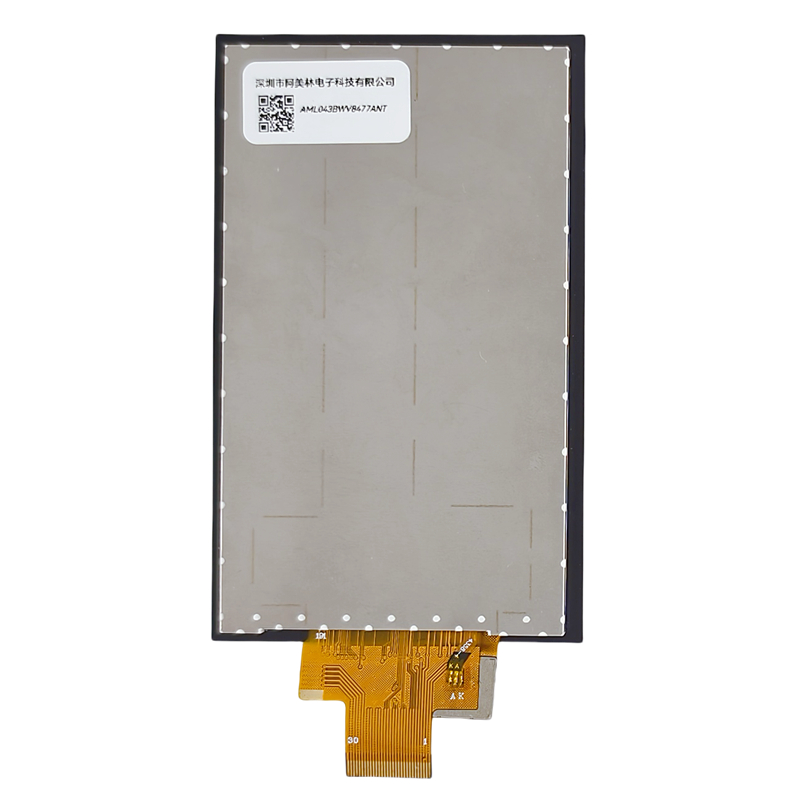

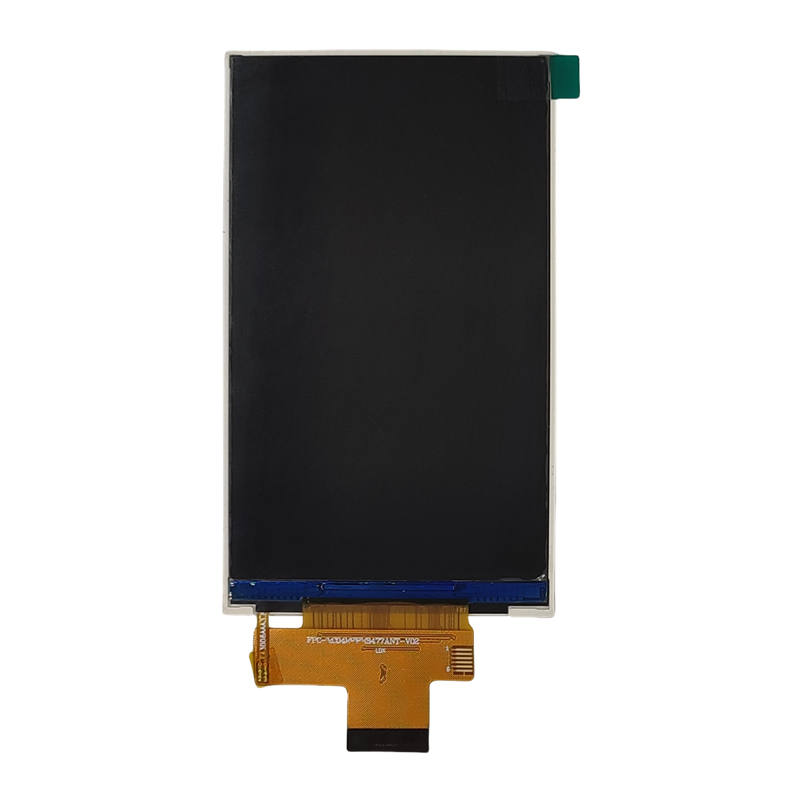

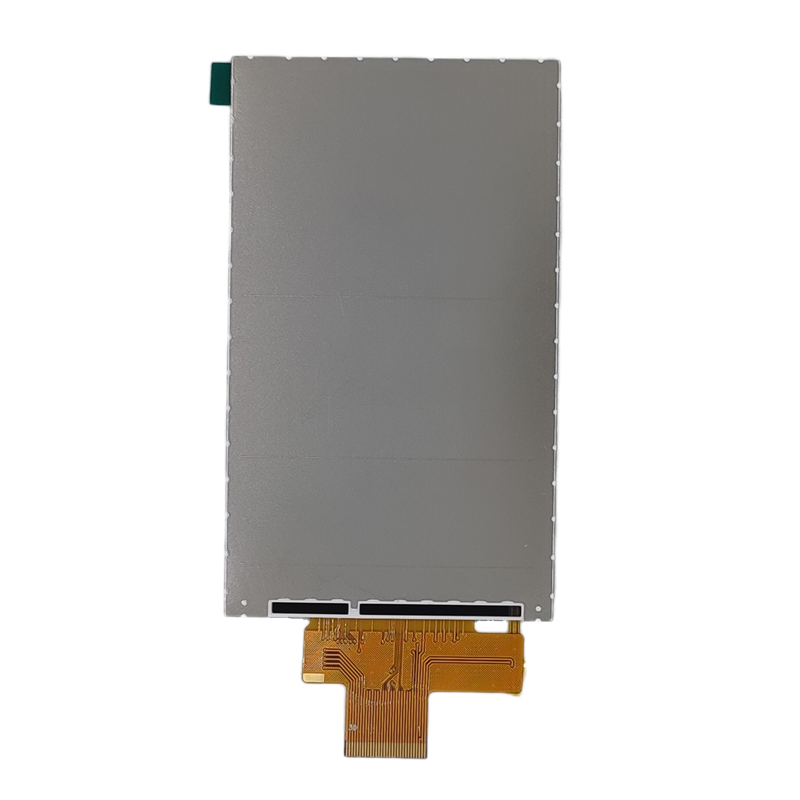

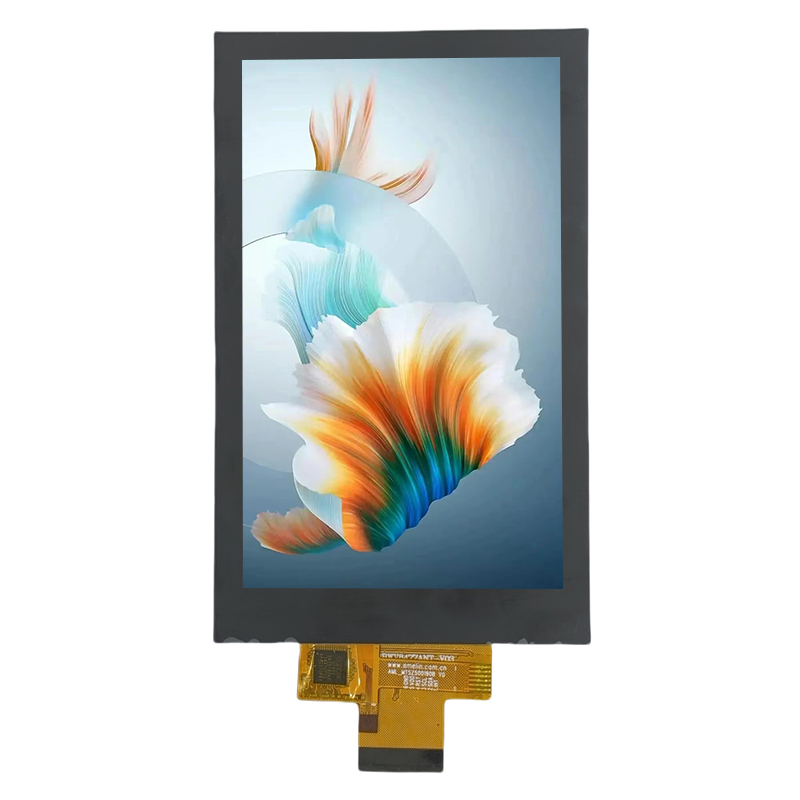

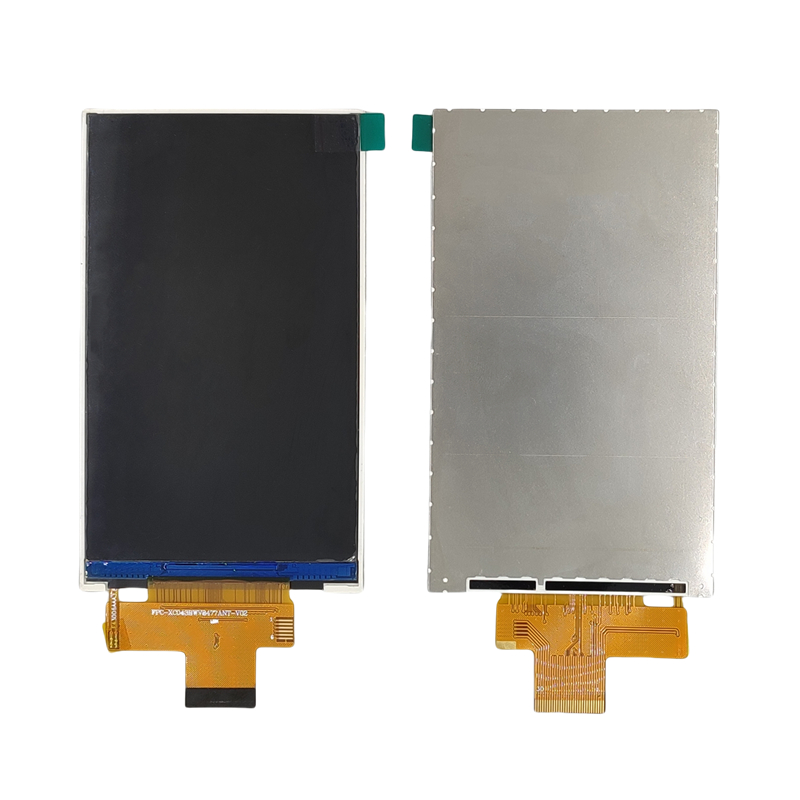

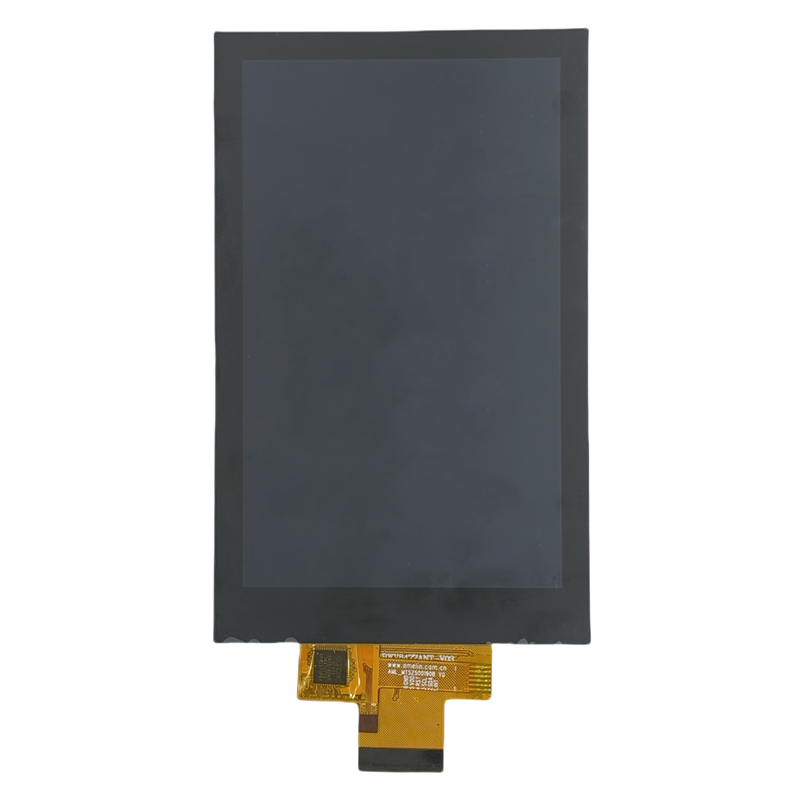

Pictures in kind
| Items | Specification |
| Display Type: | 4.3" TFT LCD Touch Screen |
| Resolution: | 480(RGB)*800 |
| Viewing Direction: | 80/80/80/80 |
| Controller IC: | - |
| Display Mode: | Transmissive Normally Black |
| Overall Size: | 66.5(W)*109.2(H)*3.3(T) mm |
| Active Area: | 56.16(H)*93.6(V) |
| colour: | 16.7M |
| Luminance: | 300cd/m2 |
| Interface Type: | MIPI Interface |
| Backlight: | 8 LEDs (white) |
| Life Time | 50000h |
| Operating Temperature: | -20----70 °C |
| Storating Temperature: | -30----80 °C |
| Certification: | ISO9001 ISOTS16949 ISO13485 |
| Compliant: | RoHS CE FCC |
| Warranty | 1 Year |
Our services
100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
The above is only a partial product display, and our company's products include but are not limited to
0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more
product and style information. Thank you!
