AML350H54004-CTP
AMELIN
Product Description

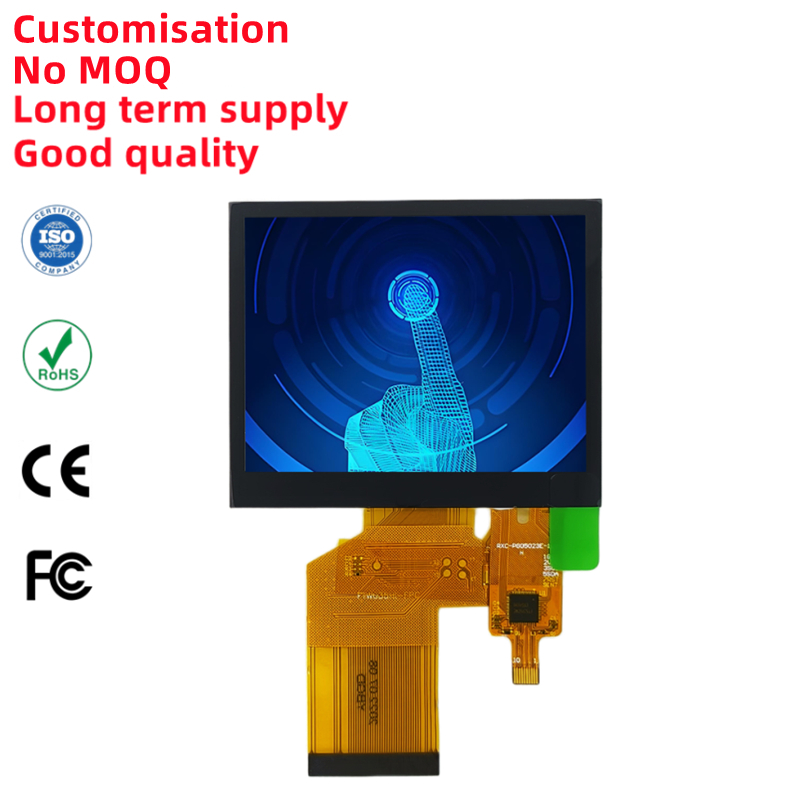

This is a 3.5" IPS TFT LCD 320x240 SPI/RGB Dual-IF - Industrial Touch Module for HMIs & Medical Devices

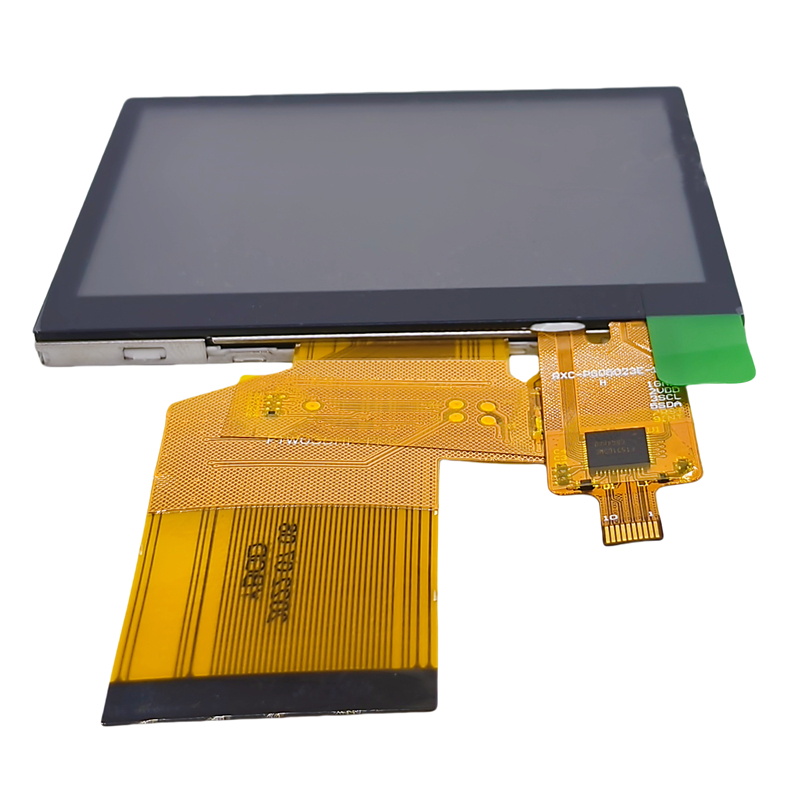

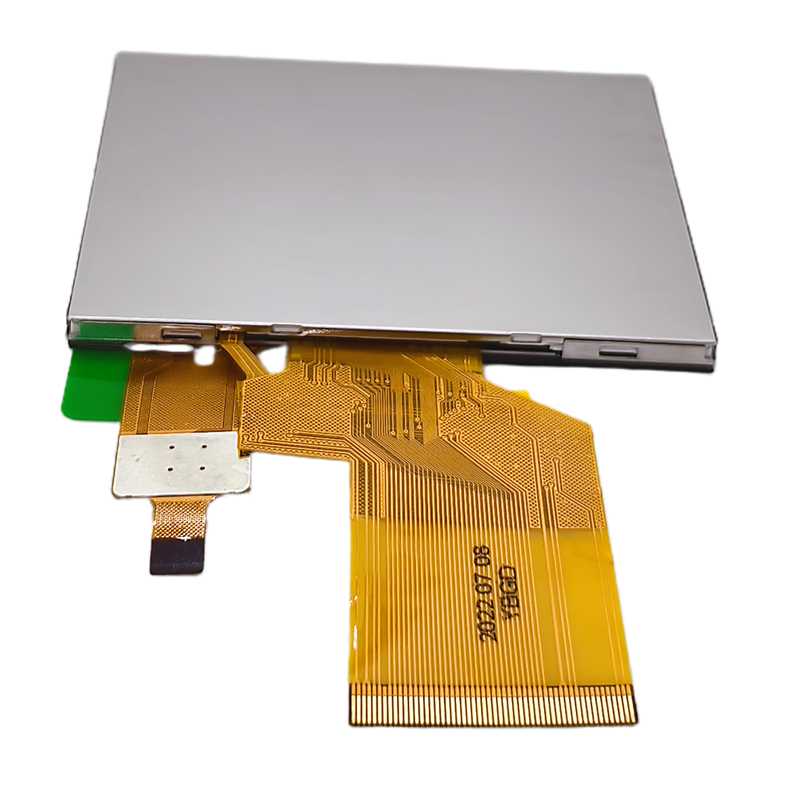

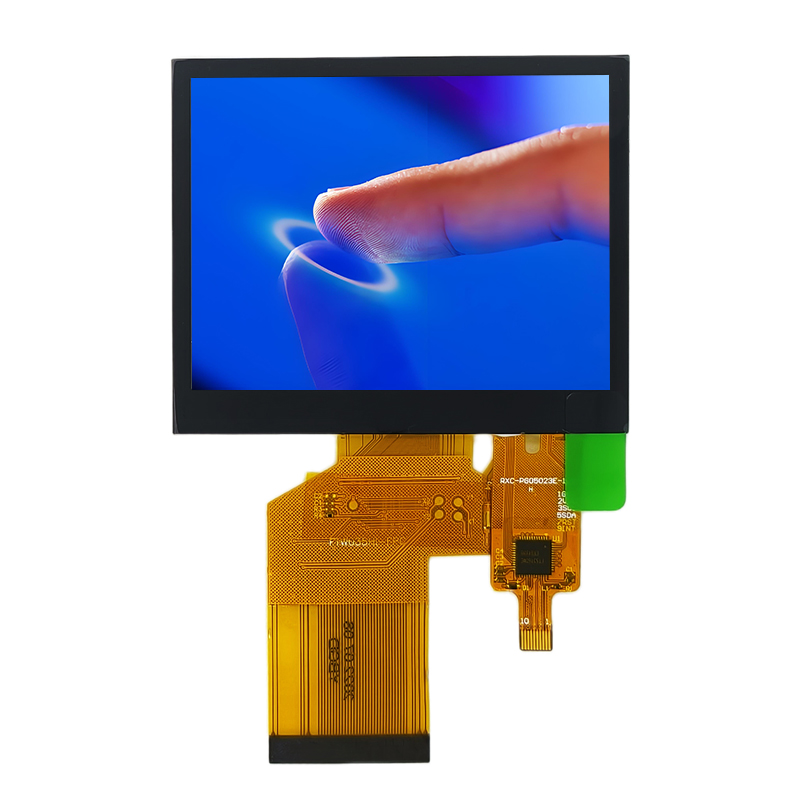

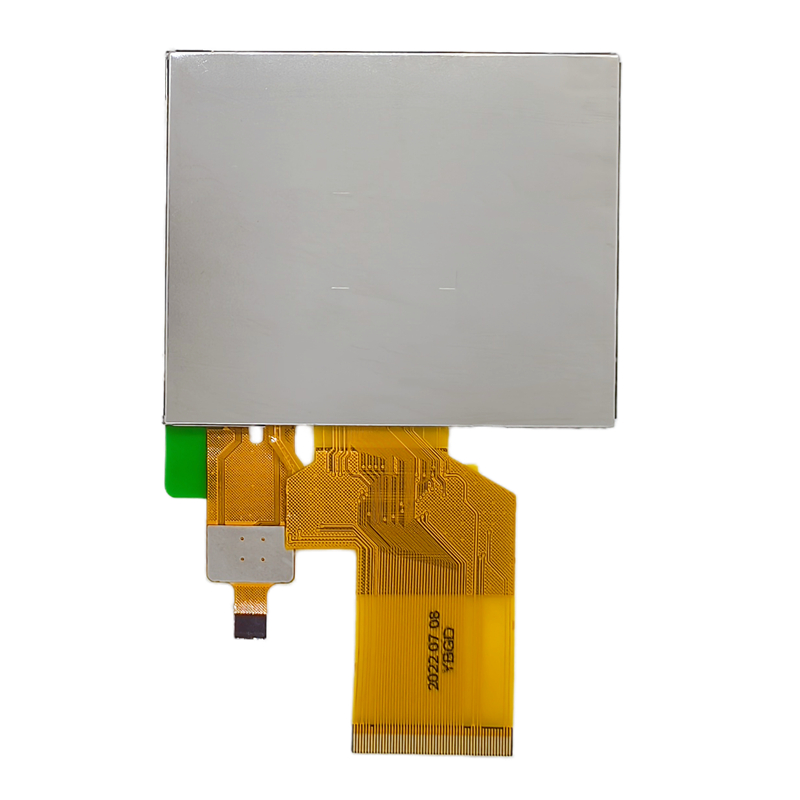

Pictures in kind
| Items | Specification |
| Display Type: | 3.5" TFT LCD module |
| Resolution: | 320(RGB)*240 |
| Viewing Direction: | Full View |
| Controller IC: | ST7272A-G4-1-H |
| Display Mode: | Transmissive Normally Black |
| Overall Size: | 76.84x63.84x3.25 mm |
| Active Area: | 70.08x52.56 mm |
| colour: | 16.7M |
| Luminance: | 350cd/m2 |
| Interface Type: | SPI+RGB Interface |
| PIN Count | 54 PINs |
| Backlight: | 6 LEDs(white) |
| Life Time | 50000h |
| Operating Temperature: | -20----70 °C |
| Storating Temperature: | -30----80 °C |
| Certification: | ISO9001 ISOTS16949 ISO13485 |
| Compliant: | RoHS CE FCC |
| Warranty | 1 Year |
Our services
100% product testing and inspection before shipment.
100% free replacement for defective product.
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
Production process
The above is only a partial product display, and our company's products include but are not limited to
0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more
product and style information. Thank you!
