Product Description
Factory sales 2" IPS LCD 240x296 SPI - Can Add Touch Screen Display for Smart Watches & Medical Wearables
from China manufacturer - Amelin Electronic

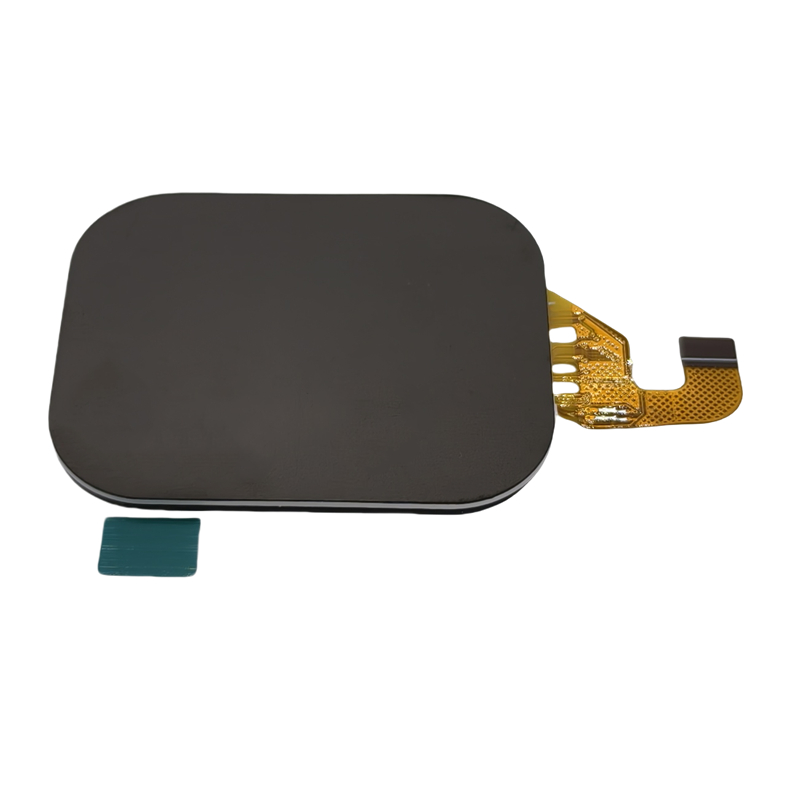

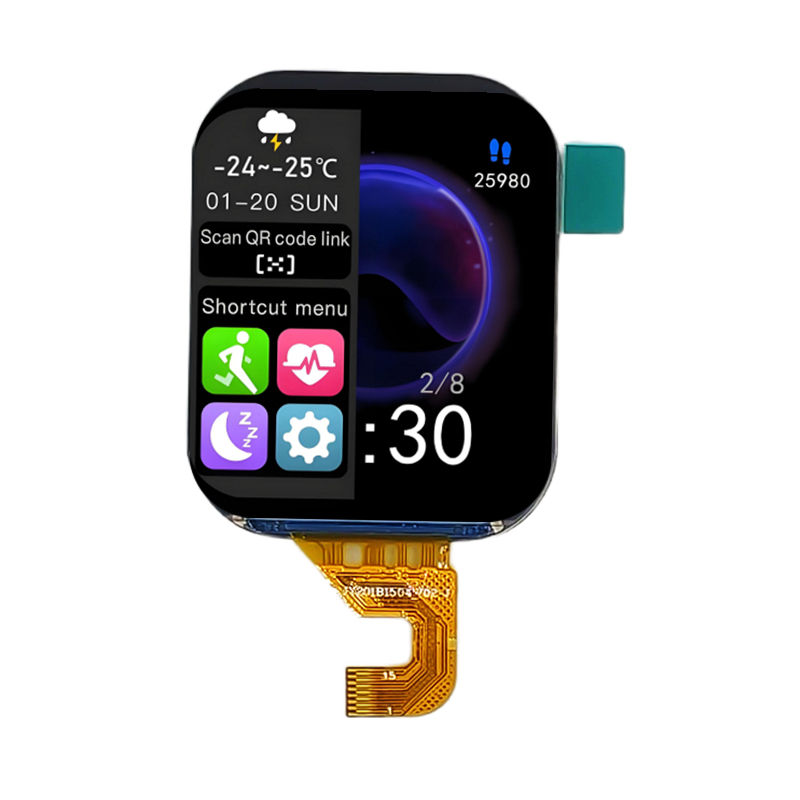

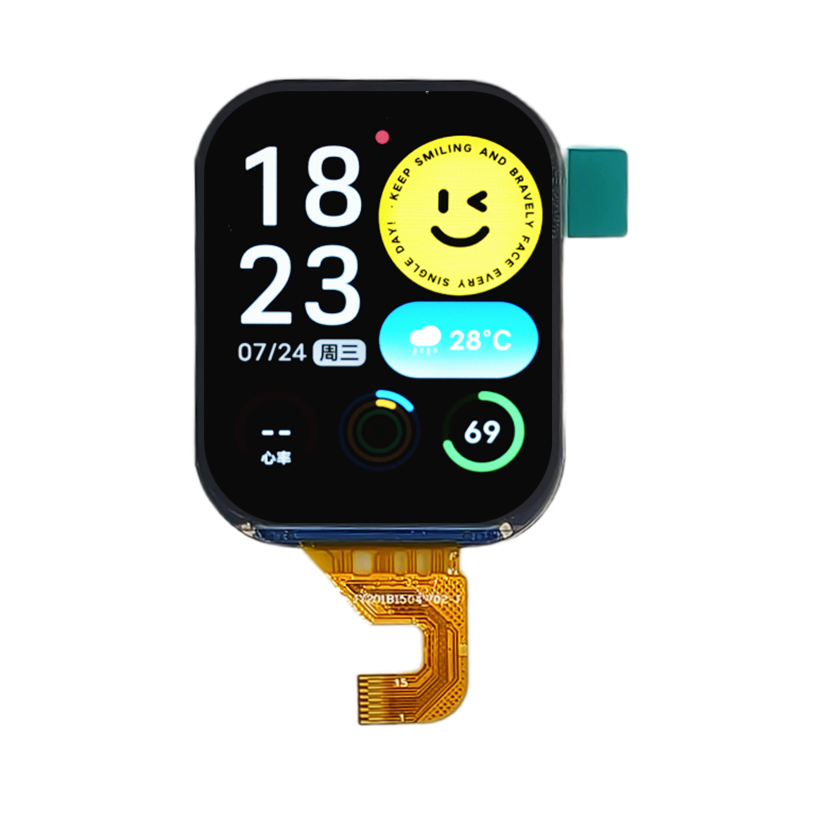

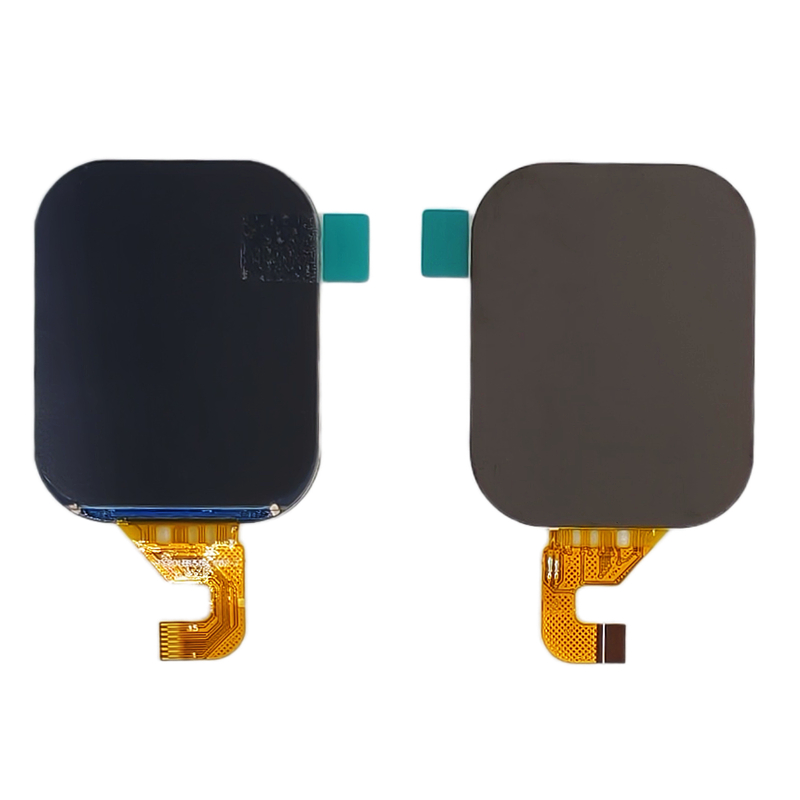

Pictures in kind
Items | Specification |
Display Type: | 2.0" TFT LCD module |
Resolution: | 240(RGB)*296 |
Viewing Direction: | Full View |
Controller IC: | JD9853 |
Display Mode: | Transmissive Normally Black |
Overall Size: | 34.04(W)*43.32(H)*1.92(D) mm |
Active Area: | 32.04(W) * 39.52(H) mm |
colour: | 16.7M |
Luminance: | 550cd/m2 |
Interface Type: | SPI Interface |
Backlight: | 4 LEDs(white) |
Life Time | 50000h |
Operating Temperature: | -20----70 °C |
Storating Temperature: | -30----80 °C |
Certification: | ISO9001 ISOTS16949 ISO13485 |
Compliant: | RoHS CE FCC |
Warranty | 1 Year |
Finally, you arrived. Contact us now, you can get more favorable prices from the factory!
Our services
100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
quantity | lead time |
1-20(pieces) | Within one working day |
21-100(pieces) | Within two working days |
101-500(pieces) | Within three working days |
501-1000(pieces) | Within a week |
1000-3000(pieces) | Within two weeks |
3000-5000(pieces) | Within three weeks |
5000+ | Within four weeks |
The above is only a partial product display, and our company's products include but are not limited to
0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more
product and style information. Thank you!
